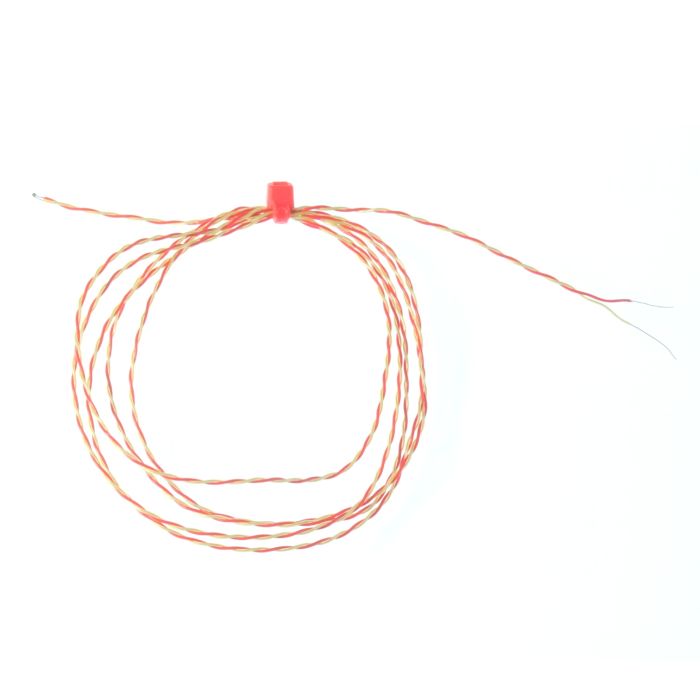

PFA Insulated Bare Tails ANSI - Type K,T
Change Currency
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Fast response, welded exposed junction |
|---|---|
| Thermocouple Type | K or T |
| Thermocouple Junction | Exposed |
| Cable Length | 300mm, 1, 2, 5 or 10 metre |
| Cable Type | Teflon® PFA insulated twin-twisted lead |
| Core / Strands | 1/0.2, 1/0.3mm solid or 7/0.2mm stranded |
| Cable Termination | Bare wire |
| Max. Temperature | +250°C |
| Min. Temperature | -75°C |
| Standards Met | ANSI MC96.1 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
