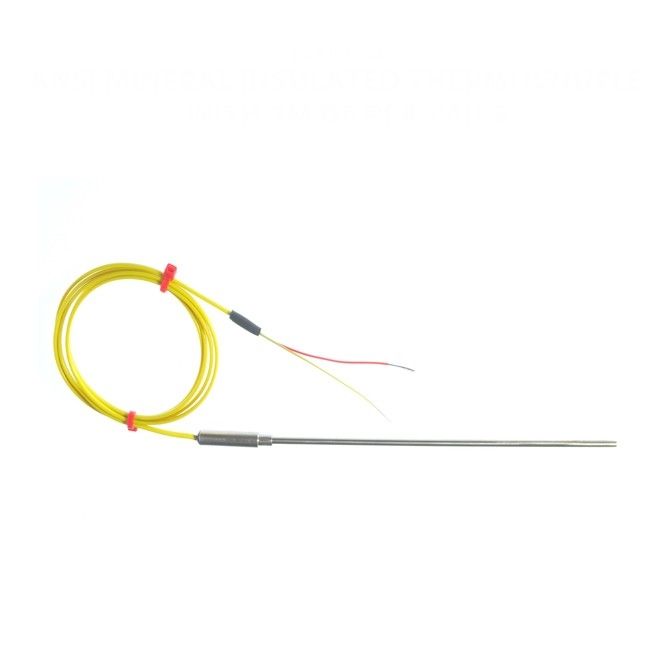

Mineral Insulated Thermocouple with Plain Pot Seal and PFA Insulated ANSI Lead - Types K
Change Currency
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Thermocouple Type | K |
| Thermocouple Junction | Insulated hot junction |
| Probe Diameter | 1.0, 1.5, 3.0, 4.5 & 6.0 mm diameters available |
| Sheath Material | 310 stainless steel sheath |
| Pot Type | Plain pot seal (200°C) |
| Cable Length | 1m |
| Cable Type | PFA Teflon® insulated flat pair cable and tails (colour coded to ANSI MC96.1) |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare Tails |
| Max. Temperature | +1100°C (+750°C for 1.0mm) |
| Standards Met | colour coded to ANSI MC96.1 |
