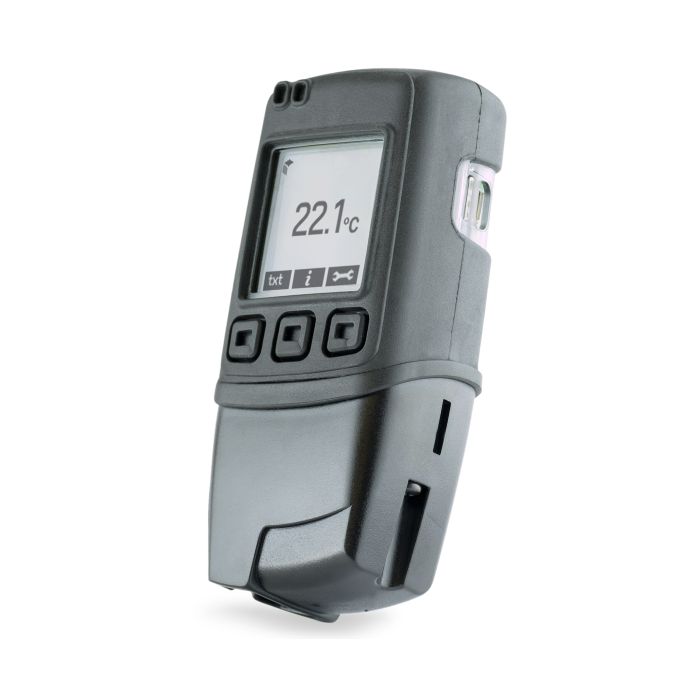

Lascar EL-GFX-TC- Thermocouple Data Logger with Graphic Screen
Change Currency
This USB data logger records over 250,000 temperature readings in one or more sessions for up to 4 months. It is compatible with K, J and T-type thermocouples. Inside the rugged case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. The EL-WIN-USB software enables quick configuration and data download via the USB port. Supplied with K-type probe and batteries, the EL-GFX-TC is a popular part.
The EL-GFX-TC is suitable for a wide variety of applications. These include:
- Pharmaceutical fridge monitoring
- Transportation
- Food & drink
- Building & site monitoring
- HVAC
**See Specifications tab for more details**
| General Description | Records over 250,000 temperature readings in one or more sessions for up to 4 months. It is compatible with K, J and T-type thermocouples. |
|---|---|
| Type | Thermocouple Data Logger with Graphic Screen |
| Thermocouple Type | K-type probe supplied: 0 to 200°C (32 to 392°F) |
| Accuracy | ±1°C / ±2°F (data logger only - thermocouple error not included) |
| Input / Ranges | K-type probe measurement range: -200 to 1350°C (-328 to 2462°F) --------- J-type probe measurement range: -200 to 1190°C (-328 to 2174°F) ------ T-type probe measurement range: -200 to 390°C (-328 to 734°F) |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Resolution of data display | High contrast dot-matrix LCD |
| Dimensions | 88 x 48.5 x 30.5mm (3.46 x 1.90 x 1.20”) |
| Power Consumption | Battery Life: 4 months |
| Power Supply | BAT 3V6 1/2AA (included) |
| Maintenance | Logging rate: User selectable between 2 seconds and 1 hour |
