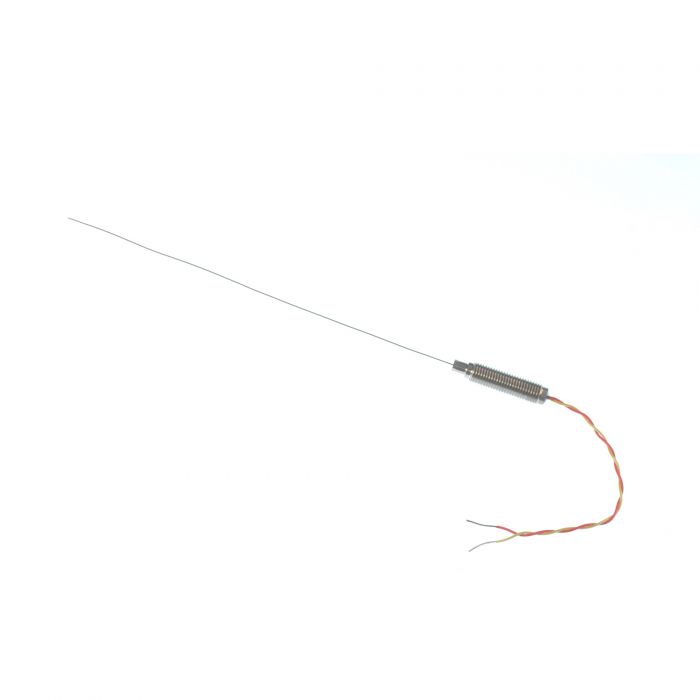

Mineral Insulated Thermocouple with Threaded Pot and 100mm of PFA insulated Twin Twisted ANSI lead - Type K

Change Currency

SKU
XE-3054
£18.25 £15.21

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



General Description Highly flexible, sheath can be bent/formed to suit many applications and processes
Thermocouple Type K
Thermocouple Junction Insulated hot junction
Probe Diameter Diameters include 1.0, 1.5, 3.0 & 6.0mm
Sheath Material Choice of 310 stainless steel or Inconel® Alloy 600 sheath
Pot Type M8 x 1.0mm fine pitch threaded pot seal (200°C)
Cable Length 100mm
Cable Type PFA twin twisted
Core / Strands 7/0.2mm
Cable Termination Bare tails
Max. Temperature +1100°C (+750°C for 1.0mm)
Standards Met colour coded to ANSI MC96.1.
